Digitized Precision Molds: Conformal Cooling Channels and Metal 3D Printing Services



Metal 3D Printing and Conformal Cooling Mold Technology

To overcome the bottleneck of traditional mold cooling efficiency, GDI introduced Japan'sSodick OPM250L /LPM325metal 3D printing system. Combined with professionalmold flow analysis (Moldflow)

Sodick OPM250L

technology, we can design "conformal cooling channels" that perfectly fit the product's contour, significantly shortening molding cycles and improving product quality.

Sodick LPM325

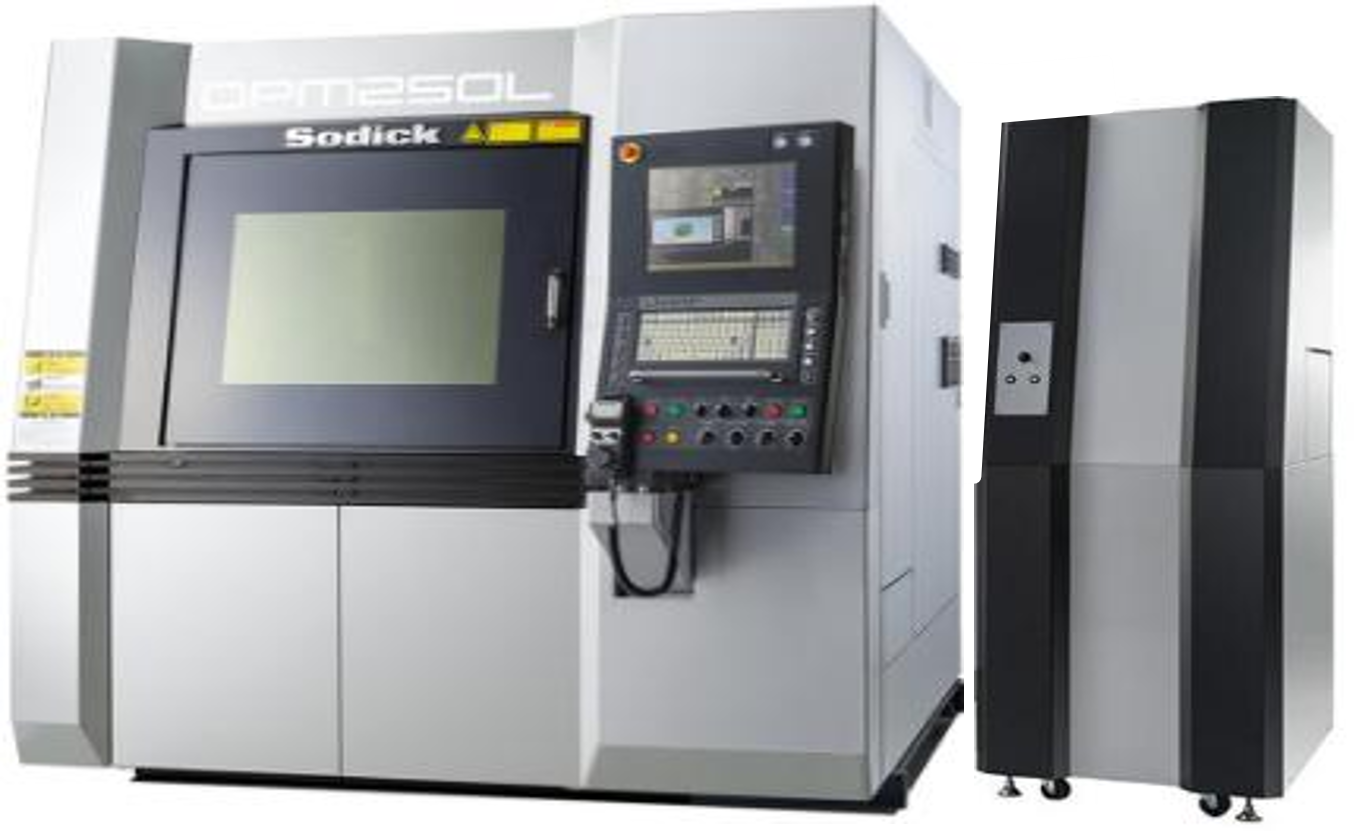

Sodick OPM250L Metal 3D Printer

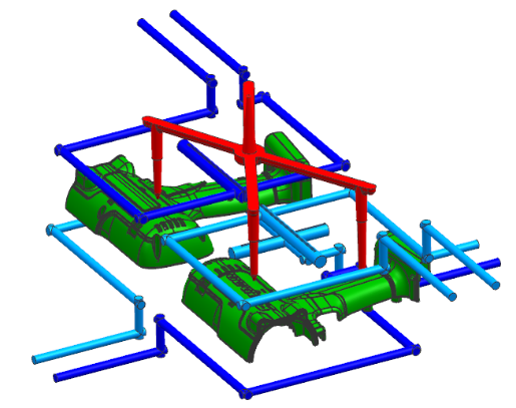

Mold Flow Analysis Diagram

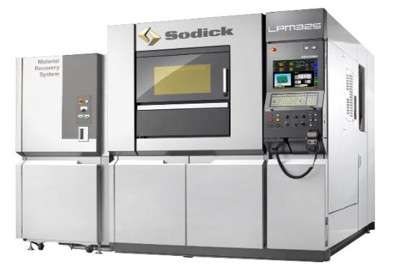

Sodick LPM325 Metal 3D Printer

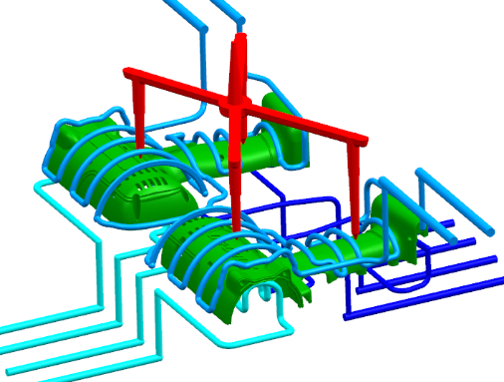

Conformal Cooling Channel Structure Diagram

Professional Mold Flow Analysis Pre-verification

Conformal Cooling Channel Structure

  • Core Technology Advantages:Mold Flow Analysis Driven Design:

  • Through data simulation in the early stages of development, we accurately predict cooling efficiency, optimize conformal cooling channel configurations, and reduce the risk of product deformation and shrinkage.Conformal Cooling Channels:

  • Utilizing metal 3D printing to break traditional processing limitations, enabling cooling channels to conform to product shapes, thereby increasing cooling efficiency by over 30%.Shortened Production Cycle:

  • Efficient cooling significantly reduces the injection molding cycle time, helping clients achieve faster mass production rhythms.Precision Additive Manufacturing:

  • Utilizing high-quality metal powders to produce high-hardness, high-precision mold steel bodies, ensuring long mold life and stable mass production.Uniform temperature control effectively solves surface shrinkage (indentation) and uneven stress issues, improving product dimensional accuracy and visual aesthetics.
