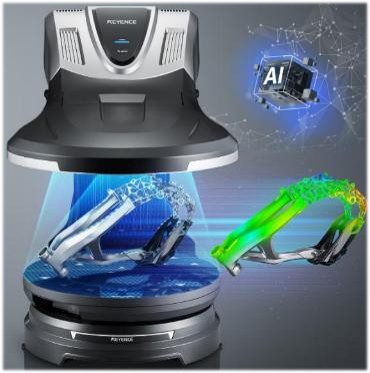

Reverse Engineering & Intelligent Inspection: Keyence VL-800 3D Scanning CMM
To strengthen verification capabilities in precision manufacturing, GDI has introduced the advanced Keyence VL-800 3D Scanning CMM. This system integrates AI-powered processing with high-accuracy metrology to digitize physical components with exceptional fidelity — providing customers with comprehensive technical support spanning product development, mold optimization, and quality validation.
Core Technical Advantages:
-
Efficient Reverse Engineering: Automatically generates 3D geometry files post-scan, with native support for STL, OBJ/3MF, and DXF-2D formats for direct CAD import — significantly reducing development cycle time.
-
360° Full-Coverage Scanning: The intelligent turntable accommodates part sizes ranging from a few inches to several feet, with a maximum load capacity of 110 lbs, meeting the inspection demands of a wide range of industrial components.
-
Micron-Level Precision Measurement: Equipped with GD&T geometric tolerancing and cross-sectional analysis, the system delivers traceable measurement data with accuracy up to ±10 μm, ensuring zero-compromise quality assurance.
-
Optimized Production Efficiency: Rapidly validates part geometry and structural integrity through digital comparison, reducing material waste during the development phase and enabling efficient lean manufacturing.
The integration of the Keyence VL-800 has elevated GDI's verification speed in precision mold manufacturing and injection mold design to an entirely new level. Through reverse engineering scans, we compare physical production samples against original design data at micron-level accuracy, enabling precise correction of minute deviations throughout the mold development process.
Whether dealing with complex geometric structures in five-axis CNC machining components or precision electronic assemblies produced by all-electric injection molding machines, GDI leverages its intelligent inspection system to ensure that every plastic injection molded part achieves the highest standard of dimensional stability. This unwavering commitment to quality has established GDI's unrivaled competitive position in the plastic injection processing and high-end mold manufacturing markets.
